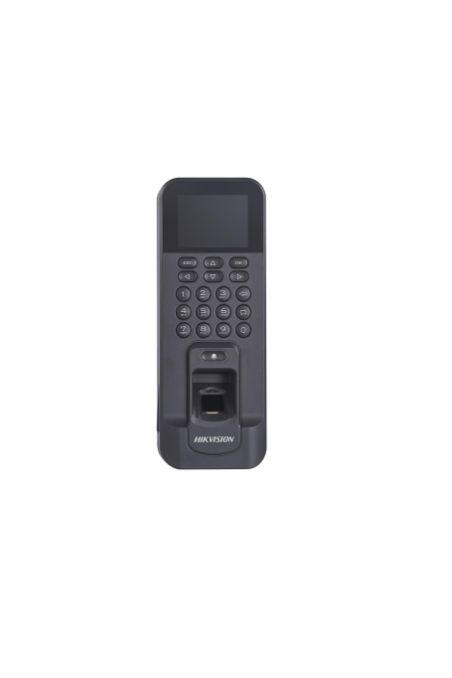

Pro Series Fingerprint Terminal - 3 in 1

DS-K1T804BMF
3 Items

Integrated management of access control and the time attendance function

3,000 fingerprints, 3,000 cards and 100,000 events storage

Built-in card reader for Mifare1 card

Communication via TCP/TP and Wi-Fi

Supports Wiegand interface

Alarm input and output interface

ISUP5.0，ISAPI

€200.00
Tax included
Description
  • System
  • Operation systemLinux
  • Display
  • Size2.4-inch
  • Resolution320 × 240
  • TypeLCD-TFT display screen
  • Audio
  • Audio output1 loudspeaker, 1 buzzer
  • Network
  • Wired networkTCP/IP, 10/100Mbps, self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • IO input1
  • IO output1
  • TAMPER1
  • USB1
  • Capacity
  • Card capacity3000
  • Fingerprint capacity3000
  • Event capacity100,000
  • Authentication
  • Card typeM1 card
  • Card reading distance0 to 4.5 cm
  • Card reading duration＜ 1 s
  • Fingerprint moduleOptical fingerprint module
  • Fingerprint comparing mode1:1 and 1:N
  • Fingerprint recognition duration＜ 1 s
  • Fingerprint False Acceptance Rate (FAR)≤ 0.001 %
  • Fingerprint False Rejection Rate (FRR)≤ 0.01 %
  • General
  • IndicatorPower/status (red/green)
  • Power supply12 VDC/1 A
  • Working temperature-10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity10% to 90% (no condensing)
  • Dimensions205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
  • InstallationSurface mounting
  • LanguageEnglish, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
