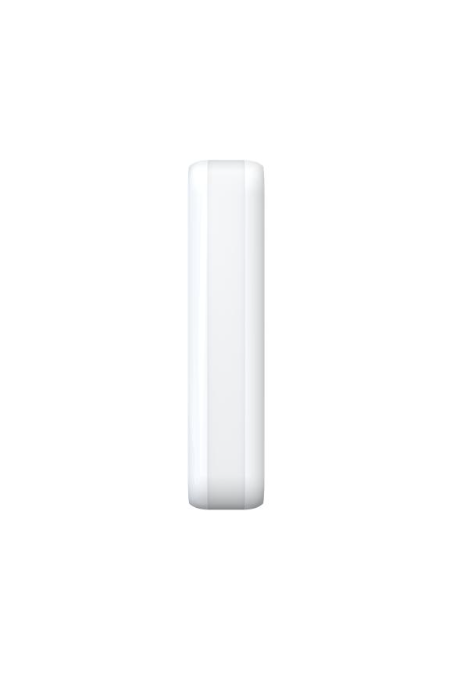

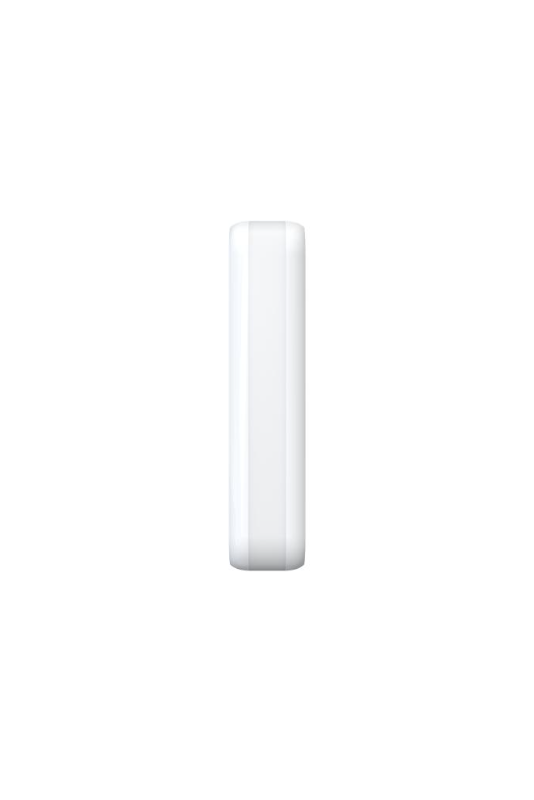

Wired Dual-Tech AM Curtain Detector

DS-PDC10DM-VG3
8 Items

Slim design for window frame installation

IP65 weather resistance for outdoor application

Active IR anti-masking

Automatic sensitivity

Selectable EOL resistors for alarm and tamper-proof wiring

Directional detection support

€58.00
Tax included
Description
  • Detection Performance
  • Detection MethodPassive Infrared;Microwave
  • Detection Range

    Wall Mount：10m

    Ceiling Mount：6m

  • Detection Angle5°
  • Detection Zones32
  • Detectable Speed0.2～3m/s
  • SensitivityAuto
  • White Light Filter6500lux
  • Microwave Frequency24GHz(24.15～24.25GHz)
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Anti-maskingSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Directional DetectionSupport
  • Interface
  • Alarm OutputNormally Closed
  • LED IndicatorGreen(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm)
  • Transmission
  • Transmission MethodWired
  • Electrical Characteristics
  • Power Supply9 to 16 VDC
  • Typical Voltage12 VDC
  • Power Consumption

    Maximum current：25mA@12VDC

    Quiescent current：16mA@12VDC

  • General
  • Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
  • Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
  • Operation Humidity10% to 90%
  • IP RateIP65
  • Dimension(WxHxD)29.2mm × 134.4mm × 39.5mm
  • Weight79g
  • Mounting Height2 to 4m
  • Mounting MethodWall;Ceiling
  • Application ScenarioIndoor,Outdoor
  • BracketL-shaped adapter included
Brand
HIK VISION
Model
AX Pro
