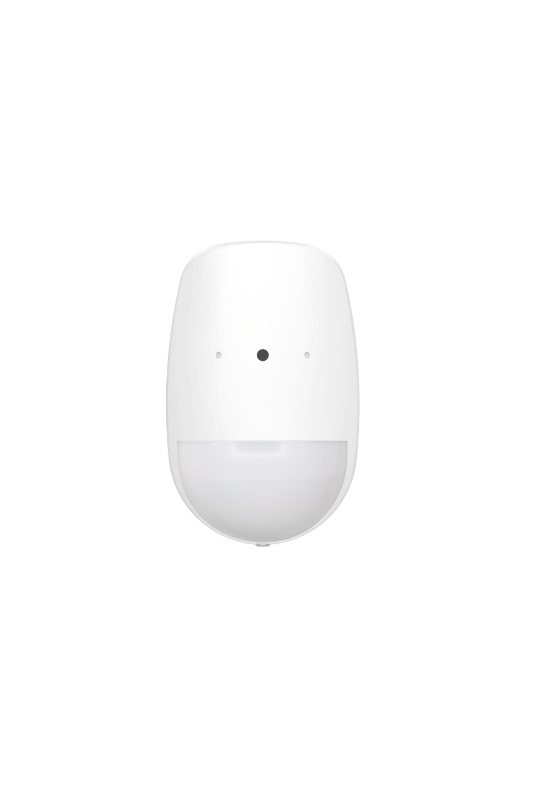

Wireless PIR-Glass Break Detector

DS-PDPG12P-EG2-WE
19 Items

PIR Detection Range: 12m/85.9°

Glass Break Range: 8m 120°

Up to 30kg pet immunity

Fully remote configurable through APP

Multiple enrollment method and easy installation design

Easy replaceable battery with PCB protected

€70.00
Tax included
Description
  • Detection Performance
  • Detection MethodPassive Infrared;Acoustic Sensor
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • Pet Immunity30Kg
  • PIR SensitivityAuto, high, pet
  • White Light Filter6500lux
  • Glass Break Range8m
  • Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
  • Glass Break Sensitivity2m, 4m, 6m, 8m
  • Glass Thickness2.4 mm to 6.4 mm
  • Digital Temperature CompensationSupport
  • Glass Size0.3 m × 0.3 m to 3 m × 3 m
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interface
  • Power SwitchPower up uenrolling
  • LED IndicatorGreen(PIR), Red(BG), Blue(alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery LifeUp to 4 years (standby time)
  • Power SupplyBattery powered
  • Battery TypeCR123A × 2
  • Typical Voltage3V
  • General
  • Operation Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.5 mm × 103 mm × 48.5 mm
  • Weight134g
  • Mounting Height1.8 m to 2.4 m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional wall & ceiling accessory
Brand
HIK VISION
Model
AX Pro
