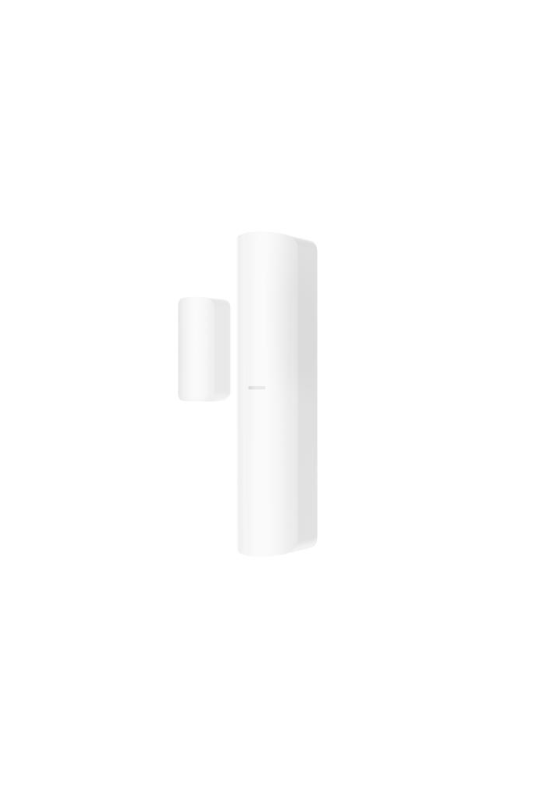

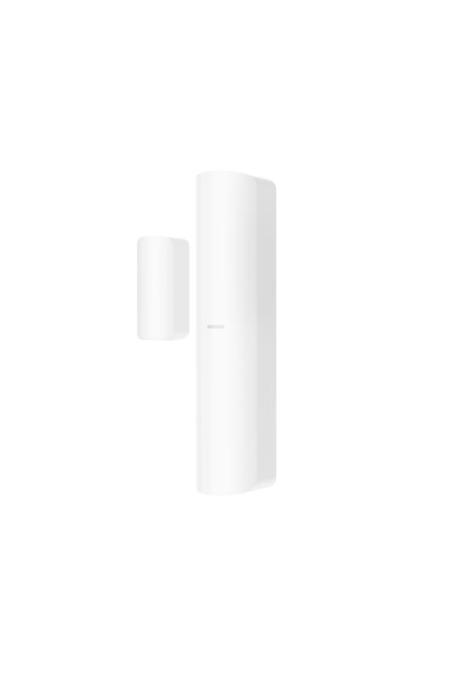

AX Pro Door Magnet and Shock Sensor - Wireless

DS-PDMCK-EG2-WE(B)
20 Items
  • Slim design for an unobtrusive (unnoticeable) installation
  • Fully remote configurable through APP
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
€52.00
Tax included
Description
  • Detection Performance
  • Detection MethodOpening Contact;Shock Sensor
  • Detection Gap43 mm Max
  • Sensitivity

    Shock detection: High, normal, low

    Tilt detection: Up to 25°

  • Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interface
  • Alarm InputNormally Closed;Normally Open;Impulse Count
  • Power SwitchPower up enrolling
  • LED IndicatorGreen(MC), Orange(tilt), Red(shock), Blue(alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery Life

    Up to 3 years (standby time)

  • Power SupplyBattery powered
  • Battery TypeCR123A x 1
  • Typical Voltage3V
  • General
  • Operation Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)

    22.5 mm × 103 mm × 23.2 mm

    13 mm × 34.4 mm × 11.4 mm

  • Weight60g
  • Application ScenarioIndoor
Brand
HIK VISION
Model
AX Pro

Specific References
